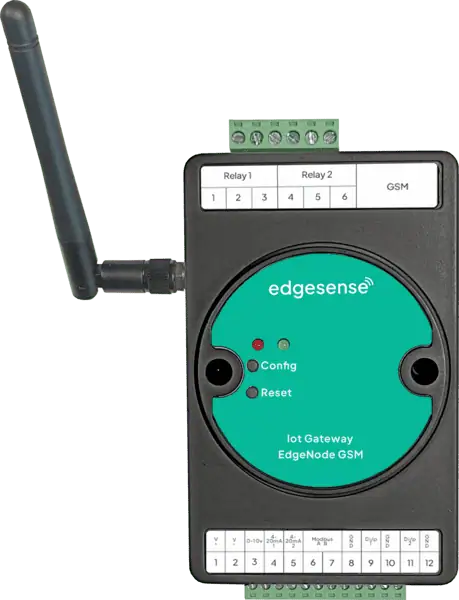

EdgeNode GSM: Advanced Industrial IoT Gateway for Medium to Large Facilities

Name: N2 IoT Gateway
Brand: IndustrialIoT Solutions
Price: 45000 INR
Availability: InStock
Rating: 4.8 (156 reviews)

Robust IoT gateway designed for medium to large industrial facilities requiring advanced protocol support, enhanced security, and superior processing power.

Built for demanding industrial environments, the EdgeNode GSM delivers enterprise-grade reliability with dual connectivity options, advanced edge computing capabilities, and comprehensive cybersecurity features.

Available Models

Choose the configuration that matches your requirements

GSM Standard

Advanced connectivity for medium facilities

4G LTE + Ethernet
Wi-Fi Dual Band
4x Digital Input
2x Analog Input
Enhanced Processing

GSM Pro

Premium features for demanding applications

Dual Protocol Support
Enhanced Security
Local Data Storage
Advanced Edge Computing
Redundant Connectivity

Advanced Features

Enterprise-grade capabilities for demanding industrial applications

Dual Protocol Support

Support for multiple industrial protocols including Modbus, BACnet, and proprietary protocols

Enhanced Security

Advanced cybersecurity features with VPN support, firewall, and certificate-based authentication

Local Data Storage

32MB flash storage with SD card support for local data logging and edge analytics

Advanced Edge Processing

ARM Cortex-A7 processor for complex edge computing and real-time data processing

OTA Updates

Secure over-the-air firmware updates with rollback capability for continuous improvement

Flexible I/O Configuration

Configurable digital and analog inputs/outputs to match your specific application needs

Why Choose EdgeNode GSM?

Advanced capabilities that deliver superior performance and reliability

Industrial Grade Reliability - IP65 rated for harsh environments

Dual Connectivity Options - 4G LTE + Ethernet for redundancy

Advanced Security Features - Enterprise-grade cybersecurity

Scalable Architecture - Support for complex industrial applications

Extended Temperature Range - Operates from -40°C to +85°C

Professional Support - 24/7 technical support and maintenance

Questions? Projects? Let’s Collaborate

Want a demo or quick consult? Message us.

Technical Specifications

Comprehensive technical details for the EdgeNode GSM

Power Supply

Input Voltage:12-48V DC

Power Consumption:< 8W typical

Power Connector:Terminal block + DC jack

Power Protection:Reverse polarity, overvoltage

Communication

Cellular:4G LTE Cat-4 (India bands)

Wi-Fi:802.11 a/b/g/n, 2.4/5GHz

Ethernet:10/100 Mbps, auto-negotiation

Bluetooth:BLE 5.0 + Classic

Interfaces

RS485:2 ports, isolated

Digital Input:4x optically isolated

Digital Output:2x relay output

Analog Input:2x 0-10V/4-20mA

Processing & Storage

Processor:ARM Cortex-A7, 1GHz

RAM:512MB DDR3

Flash Storage:32MB + SD card slot

Data Logging:Up to 1M records locally

Physical Specifications

Dimensions:150 x 100 x 45 mm

Weight:400g

Enclosure:Aluminum alloy, IP65

Mounting:DIN rail, wall mount, pole mount

Operating Environment

Operating Temperature:-40°C to +85°C

Storage Temperature:-40°C to +85°C

Humidity:5% to 95% RH, non-condensing

Vibration:IEC 60068-2-6 compliant

Ready to Upgrade to EdgeNode GSM?

Experience the power of advanced industrial IoT connectivity with enhanced security, dual protocols, and superior processing capabilities. Get expert consultation for your project.
