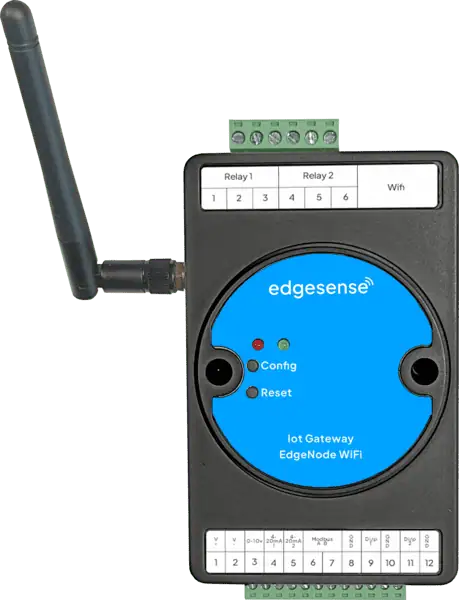

EdgeNode Wifi

EdgeNode Wifi: Heavy-Duty IoT Gateway for Large-Scale Industrial Complexes

Name: N3 IoT Gateway
Brand: IndustrialIoT Solutions
Availability: InStock
Rating: 4.9 (203 reviews)

The ultimate IoT gateway for large industrial complexes requiring maximum connectivity, processing power, and reliability. Built for the most demanding industrial environments.

With quad-core processing, redundant connectivity, and support for multiple industrial protocols, the EdgeNode Wifi is the flagship solution for enterprise-scale IoT deployments.

Available Models

Enterprise-grade configurations for maximum performance

N3 Standard

Heavy-duty multiprotocol gateway

Multi-Protocol Support
High Processing Power
Redundant Connectivity
8x Digital I/O
Industrial Grade IP67

N3 Enterprise

Maximum performance and features

All Standard features
Edge AI Processing
Advanced Analytics
Custom Protocol Support
Premium Support

Enterprise Features

Maximum performance capabilities for the most demanding industrial applications

Multi-Protocol Support

Support for Modbus, BACnet, OPC-UA, MQTT, LoRaWAN, and custom industrial protocols

High Processing Power

ARM Cortex-A53 quad-core processor for complex edge computing and real-time analytics

Redundant Connectivity

Dual 4G LTE, Ethernet, Wi-Fi, and LoRa for maximum reliability and failover protection

Extensive Storage

64MB flash + SD card support for local data storage, buffering, and edge analytics

Flexible I/O Configuration

8x digital inputs, 4x analog inputs, 4x relay outputs - fully configurable for any application

Edge AI Processing

Built-in machine learning capabilities for local data processing and intelligent decision making

Why Choose EdgeNode Wifi?

Ultimate reliability and performance for mission-critical industrial applications

Maximum Reliability - IP67 rated with redundant connectivity options

Extreme Temperature Range - Operates from -40°C to +85°C

Enterprise Security - Military-grade encryption and cybersecurity

Scalable Architecture - Handle thousands of data points simultaneously

Future-Proof Design - Upgradeable firmware and expandable capabilities

24/7 Premium Support - Dedicated technical support and maintenance

Questions? Projects? Let’s Collaborate

Want a demo or quick consult? Message us.

Technical Specifications

Complete technical specifications for the EdgeNode Wifi

Power Supply

Input Voltage:12-48V DC, 24V AC

Power Consumption:< 15W typical

Power Connector:Terminal block + DC jack

Power Protection:Surge, reverse polarity, overvoltage

Communication

Cellular:Dual 4G LTE Cat-6 (India bands)

Wi-Fi:802.11 a/b/g/n/ac, 2.4/5GHz

Ethernet:Dual 10/100/1000 Mbps

LoRa:LoRaWAN 1.0.3, 865-867 MHz

Interfaces

RS485:4 ports, isolated

Digital Input:8x optically isolated

Digital Output:4x relay output

Analog Input:4x 0-10V/4-20mA

Processing & Storage

Processor:ARM Cortex-A53 Quad-core, 1.5GHz

RAM:2GB DDR4

Flash Storage:64MB + SD card slot (up to 128GB)

Data Logging:Up to 10M records locally

Physical Specifications

Dimensions:200 x 150 x 60 mm

Weight:800g

Enclosure:Die-cast aluminum, IP67

Mounting:DIN rail, wall mount, pole mount, panel mount

Operating Environment

Operating Temperature:-40°C to +85°C

Storage Temperature:-40°C to +85°C

Humidity:5% to 95% RH, non-condensing

Vibration:IEC 60068-2-6, 5-500Hz, 2G

Ready for Enterprise-Grade IoT?

Deploy the most powerful industrial IoT gateway with maximum connectivity, processing power, and reliability. Perfect for large-scale industrial complexes and mission-critical applications.
